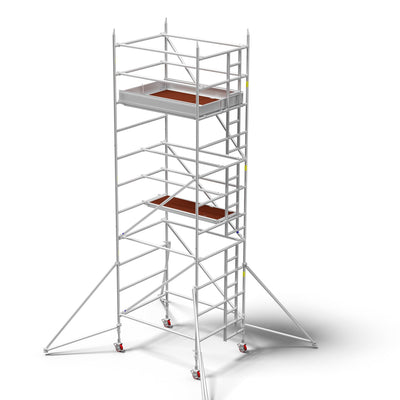

Name: Heavy Duty Aluminium Scaffold Tower - Double Width x 2.7m Long
Brand: Leachs
SKU: AC-6443-2.2
Availability: OutOfStock

Roll over image to zoom in

Introducing the Heavy Duty Ladderspan Tower single width (1.8m long), the ultimate industrial aluminium mobile scaffold tower on the market today.

The most robust form of non-powered mobile access equipment available, the Heavy Duty Tower range has led the way since its original creation nearly 40 years ago and is still the pinnacle of safety and strength in working-at-height access.

When the Heavy Duty Ladderspan Tower was first designed, the concept was simple - to create the best possible product that ensures an operator can work at height safely. Every aspect of the tower was carefully considered and designed to ensure the HD Tower would be strong enough to cope with the demands of everyday life on a construction site.

Supplied as standard with Caster Wheels - SWL 2.5 tonne.

Can also be supplied with Base Jacks for SWL 3 tonne - please enquire with Leach's

Instruction Manual

Adjustable Leg Type	Captive pin-locating adjustable legs
Frame Fitting	Conical “head fitting” aluminium casting
Joint Type	Full 360o TIG welded frame joint connections
Platform Length	2.7m
Tower Loading (Using Base Jacks)	3,000 kgs (3.0t)
Tower Loading (Using Caster Wheels)	2,500 kgs (2.5t)
Tower Standard	BS EN 1004:2004
Tower Width (Double)	1.4m
Tube Diameter	48mm diameter tube (standard scaffold tube dia.)
Tube Thickness	3.0mm extruded aluminium 6082T6 fluted tube
