| Adjustable Leg Type | Captive pin-locating adjustable legs |
|---|---|
| Frame Fitting | Conical “head fitting” aluminium casting |
| Joint Type | Full 360o TIG welded frame joint connections |
| Platform Length | 1.8m |
| Tower Loading (Using Base Jacks) | 3,000 kgs (3.0t) |
| Tower Loading (Using Caster Wheels) | 2,500 kgs (2.5t) |
| Tower Standard | BS EN 1004:2004 |
| Tower Width (Single) | 0.8m |
| Tube Diameter | 48mm diameter tube (standard scaffold tube dia.) |
| Tube Thickness | 3.0mm extruded aluminium 6082T6 fluted tube |

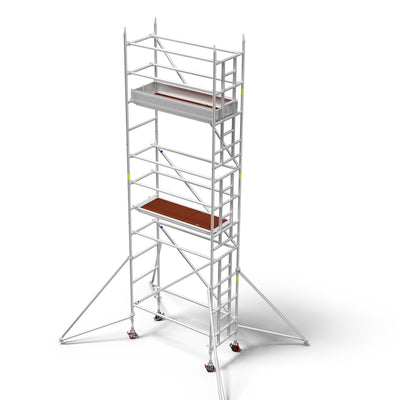

Heavy Duty Aluminium Scaffold Tower - Single Width x 1.8m Long Working Height: 2.2m
POA
