- TO OPERATE VIA RELEASE HANDLE: Position the forks the correct distance apart to locate into fork pockets.
- Remove fork pocket heel pins from skip.
- Drive forks into the fork pockets.
- Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into the hole provided.
- Take the forklift skip to the intended area to be tipped and release the secondary lock mechanism on the rear.
- To release the skip and empty the contents pull the release handle.
- Once emptying is complete pull the skip back so as to re-latch on to the hook
- Replace the safety lock mechanism.
- The skip is now ready for use again.
- TO OPERATE VIA AUTO-RELEASE: Follow steps 1-4 above and then: Take the forklift skip to the large yard skip and release the secondary lock mechanism on the rear of the skip.
- Position the forklift skip at the correct height with the actuator plate positioned over the yard skip side (the actuator plate is located between the two side entry fork pockets).
- Lower the forklift skip on to the side of the yard skip until the hook release mechanism is disengaged.
- Raise the forklift to clear the side of the yard skip, pull away and lower safely to the ground. Once emptying is complete pull the skip back so as to re-latch on to the hook.
- Replace the safety lock mechanism.
- The skip is now ready for use again.

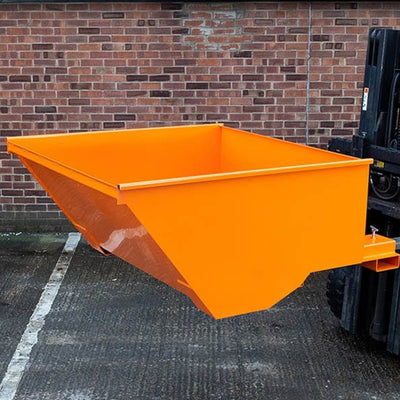

Low Level Fork Mounted Skip Size: Manual - 1380mm x 910mm
From £1,426.25
ex. VAT
£1,799
