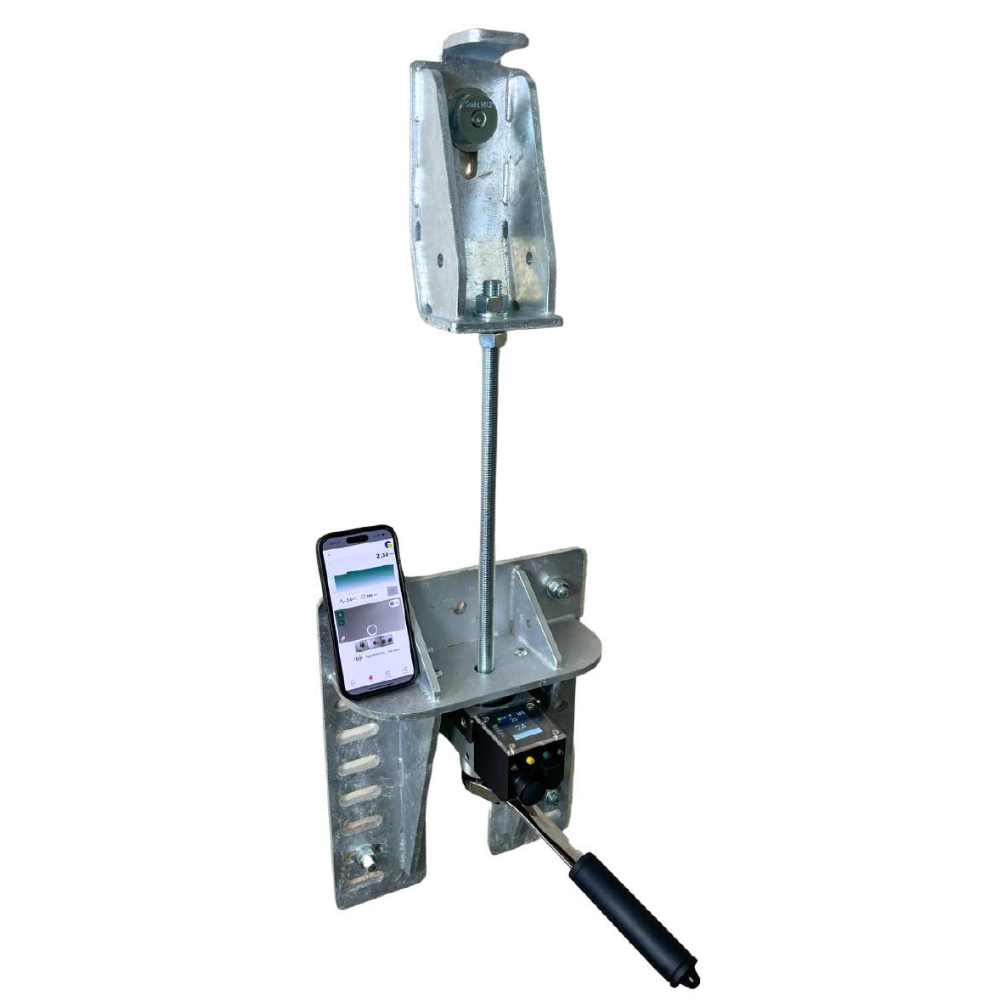

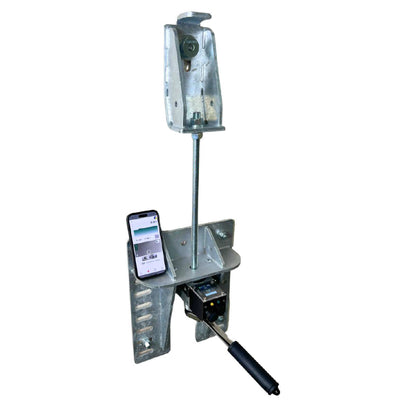

The Staht Shear Test Rig is a modular accessory that works with either the Staht t25 or t60 load cell to verify the shear performance of anchors in construction substrates such as concrete and masonry.
The sliding head features a PTFE gasket to reduce friction, a keyhole for observing the substrate, and a datum boss to allow displacement measurement. The shear test chassis is designed to be mounted by 4 anchors into the substrate. Anchor spacing is based on typical UK/European brick centres.
App Included - Free Subscription
Record Photos and Videos
Test Geolocation Recorded on Map
Custom Form Fields
The Shear Test Kit is provided in a Staht kit bag with all the necessary accessories to perform the shear test:
60kN Shear Test Chassis
60kN Sliding Head & PTFE Gasket
500mm Drop Rod & Thrust Nut
M6, M8, M10, M12, M14, M16, M20 Shear Head Bushes
M6, M8, M10, M12, M14, M16, M20 Threaded Washers
24mm Ratchet Ring Spanner
24mm Open Ended Spanner
Kit bag with padded shoulder straps
**PLEASE NOTE: this kitdoes notinclude a t25/t60 load cell.
Buy your Staht Shear Test Kit with App & in Kit Bag today. Contact us on +44 (0) 1432 346 800 if you require any additional information.
